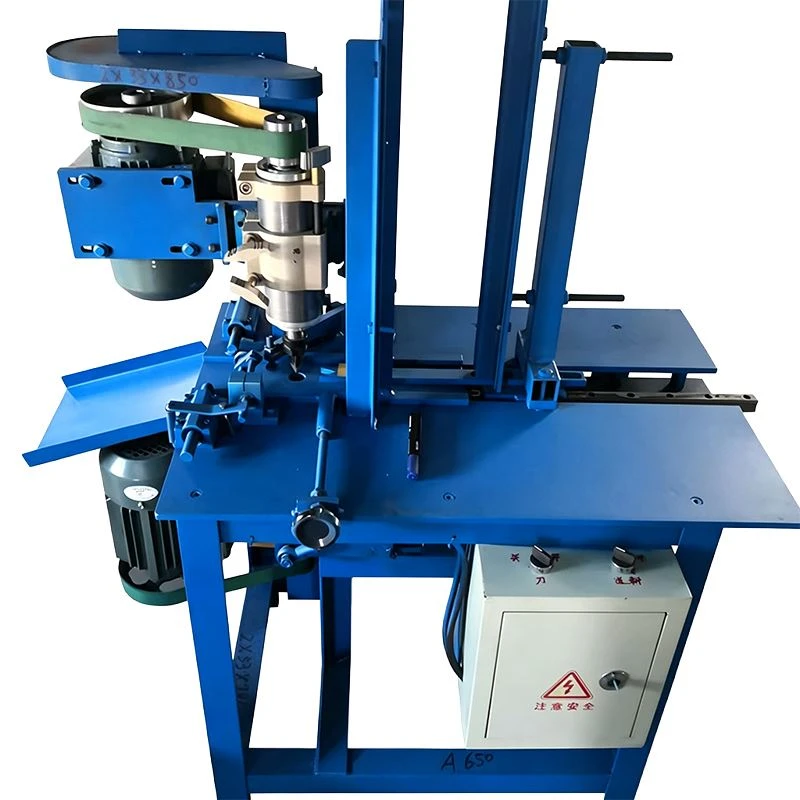

The Automatic Wood Drilling Machine is developed for drilling installation holes in wooden handles before brush head assembly. It uses a chain conveyor to move the handles through the drilling station. Each section of the chain has a locating connector and groove designed to match the size of the wooden handle, helping keep the workpiece in position as it travels toward the drill.
Once the handle reaches the drilling position, a pressing cylinder holds it securely while the drill completes the hole. After drilling, the drill automatically retracts and the conveyor moves the next workpiece into position. This creates a repeated drilling cycle with automatic feeding rather than requiring the operator to position every wooden handle individually.
Chain Conveyor and Groove Positioning
The feeding system is an important part of the machine because drilling accuracy depends on the workpiece remaining stable at the drilling point. The chain conveyor provides continuous movement, while the locating grooves correspond to the dimensions of the wooden handles.
When the workpiece reaches the drilling station, the pressing cylinder fixes it before drilling begins. The sequence then continues automatically after the drill retracts. An electronic counter records the number of completed drilling operations and controls the intermittent movement of the conveyor. This gives the operator a straightforward way to monitor production quantities during repeated processing.
The drilling hole is not an isolated feature of a wooden handle. It provides the installation point required for the subsequent brush head assembly process. Shengfeng Machinery has experience supplying drilled wooden handles to paint brush manufacturers during its own wooden handle production stage.
The company therefore pays attention to spindle concentricity and pneumatic system adjustment during machine assembly. Each machine spindle is checked for concentricity after assembly so that the drilling position can meet the requirements of wooden handle assembly. The factory has 10 experienced technical workers who participate in equipment assembly and commissioning.
Suitable for Repeated Production Cycles
The Automatic Wood Drilling Machine is suited to repeated drilling work where a consistent feeding sequence is required. Automatic chain feeding, groove positioning, pneumatic pressing, drilling, counting, and drill retraction form one continuous operating cycle.
The machine can also support mixed purchasing requirements. Customers may combine different drill specifications or processing parameters within a single order, which is useful for buyers handling several wooden handle products. The factory's stated monthly production capacity is approximately 15 machines, and production scheduling can be adjusted according to order conditions.
The warranty period is 6 months. If an equipment fault occurs during the warranty period, replacement parts can be sent free of charge with guidance for replacement, so the customer does not need to return the complete machine for repair. This approach can reduce downtime and international transportation costs associated with equipment maintenance.
The machine is produced within the company's wood processing equipment system, with access to local machining resources in Qingcao Town. Standard production and delivery arrangements can be confirmed according to the customer's order requirements.
Product Specifications
|
Specification |
Details |
|
Equipment Type |
Single Axis Automatic Wood Drilling Machine |
|
Feeding Method |
Chain conveyor automatic feeding |
|
Positioning Method |
Groove positioning and pressing cylinder |
|
Counting Function |
Electronic counter |
|
Warranty Period |
6 months |
