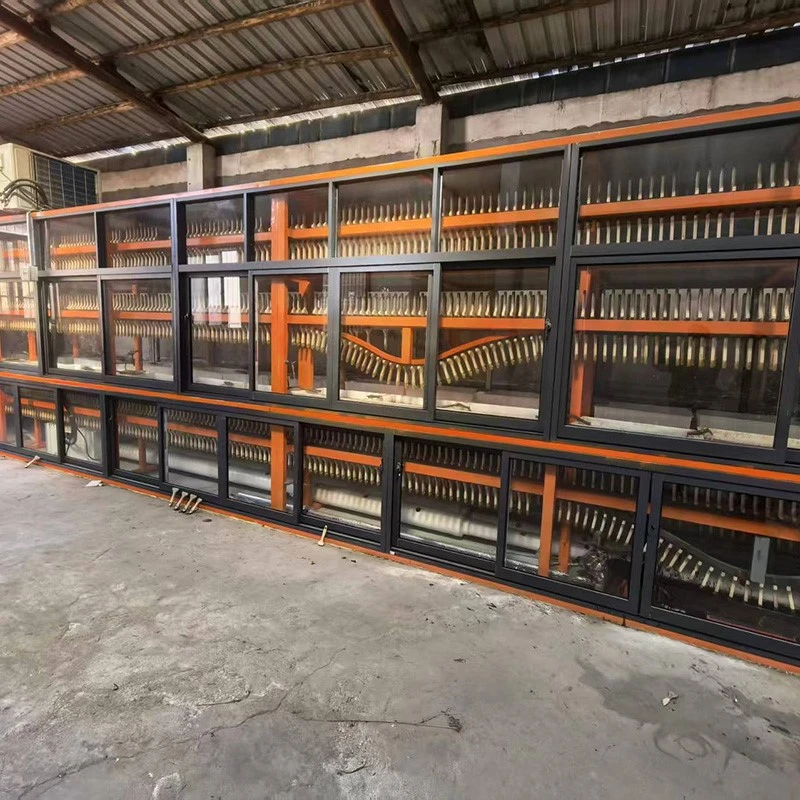

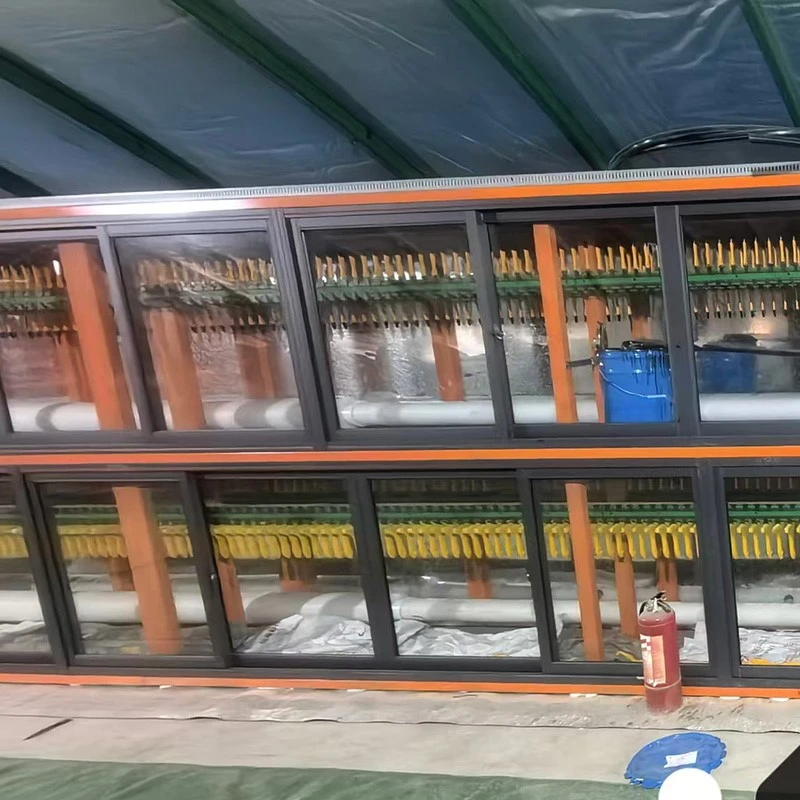

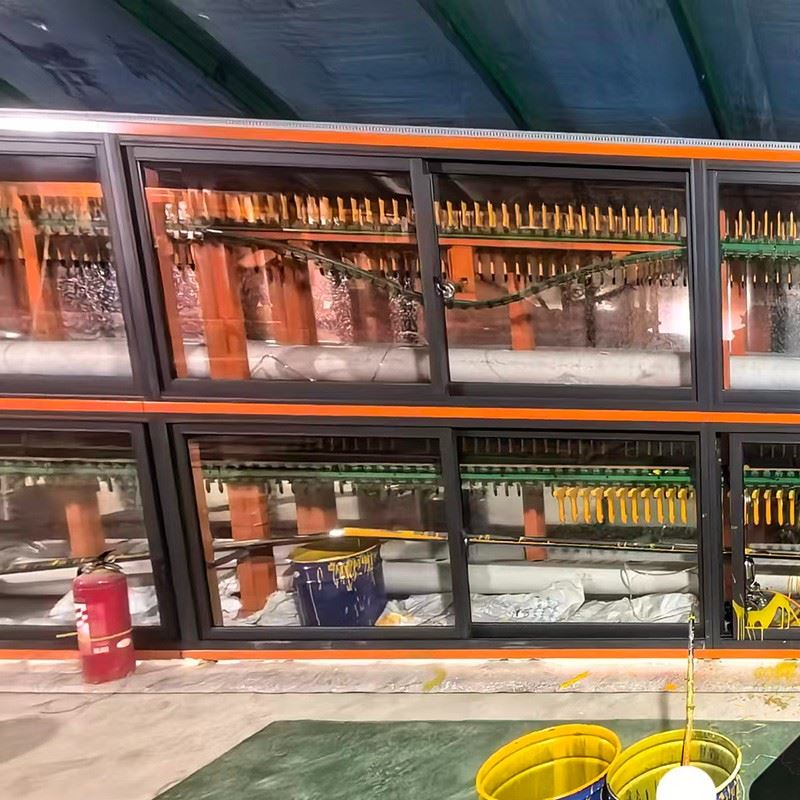

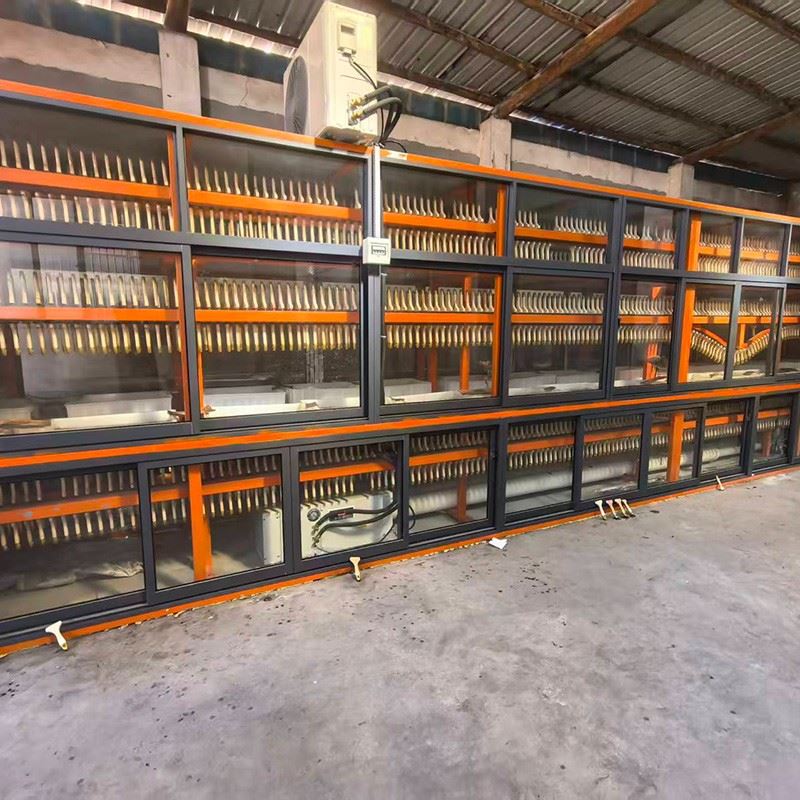

The Automatic Spray Coating Machine is designed for the coating stage of wooden handle production. It is used after sanding to apply paint to wooden handles through an automated dipping process. The equipment combines a coating tank, lifting mechanism, and conveying system so that wooden handles can be moved into the coating area and removed after treatment. Compared with fully manual dipping, the automated movement helps reduce repeated handling and provides better control over the immersion and lifting process.
The machine is mainly intended for wooden handles used in paint brushes and similar products. Its core functions include automatic dipping and paint circulation filtration. A drying function can also be selected when required. The coating process can therefore be arranged according to the customer's production requirements and the type of finishing process used after sanding.
More Consistent Immersion and Lifting
In wooden handle coating, the movement of the workpiece has a direct effect on the finished paint film. Through its own wooden handle production experience, Shengfeng Machinery found that uneven coating thickness and paint runs were common problems. These defects were closely related to the speed at which the handle entered and left the paint.
For this reason, the lifting mechanism of the Automatic Spray Coating Machine is designed with a controlled movement curve. A speed-controlled motor provides smoother immersion and lifting actions, helping reduce coating defects caused by sudden movement. The technical team also has experience communicating with paint suppliers about viscosity, leveling characteristics, and curing time. Based on the customer's paint type, equipment parameter suggestions can be provided during the preparation stage.
Paint management is another part of the machine design. The equipment supports paint circulation and filtration, allowing coating material to move through the system while impurities are filtered. This is useful in repeated coating operations where maintaining a relatively clean coating medium is important.
The factory can process the stainless steel tank and conveying components used in the equipment with its own CNC sawing and cutting equipment. The use of stainless steel components in these areas is intended to provide suitable durability and corrosion resistance for the coating environment. The company can also provide sample testing before a larger purchase. Customers may send their wooden handles and paint to the factory so the coating result can be evaluated with the actual materials.
Factory Testing and Purchasing Support
Sample testing is available before production, with the customer responsible for the return shipping costs of the samples. This gives buyers an opportunity to check how their specific wooden handles and paint behave during the coating process before committing to equipment procurement.
The standard lead time is 30 days, and the warranty period is 6 months. Spare parts can be supplied over the long term. The company accepts payment in US dollars and RMB. The production team can also provide technical recommendations based on the customer's wood handle and coating requirements.
The equipment is intended for customers who want to move from manual coating toward a more controlled and repeatable process. Its combination of automatic dipping, circulation filtration, controlled lifting, and optional drying provides several functions within the coating stage while keeping the operating process focused on wooden handle production.
Product Specifications
|
Specification |
Details |
|
Equipment Type |
Automatic Wood Handle Dipping Machine |
|
Core Function |
Automatic dipping and paint circulation filtration |
|
Optional Configuration |
Drying function |
|
Applicable Workpieces |
Wooden handles for paint brushes |
|
Warranty Period |
6 months |
