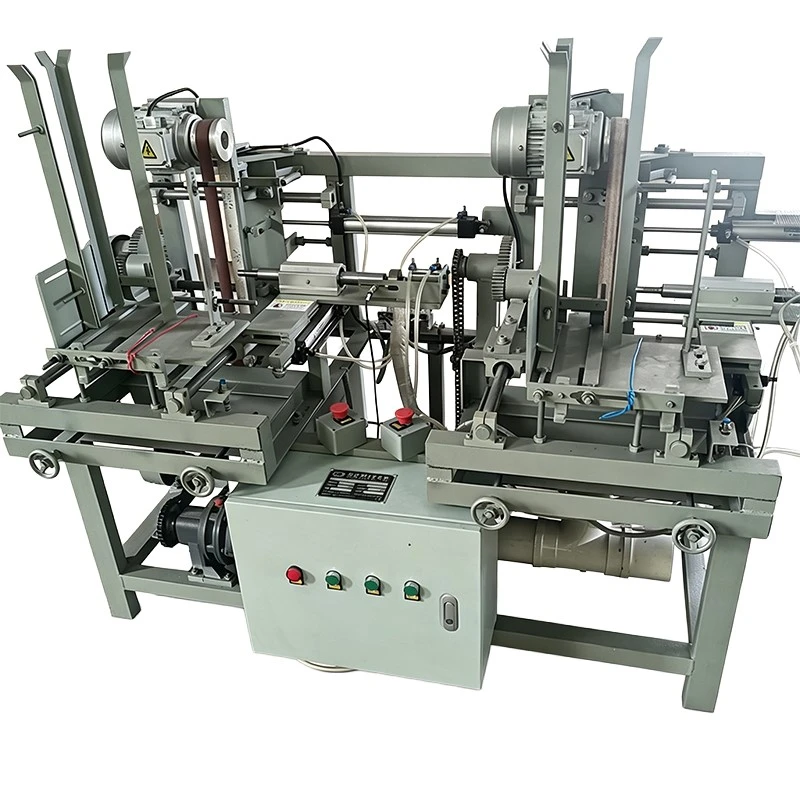

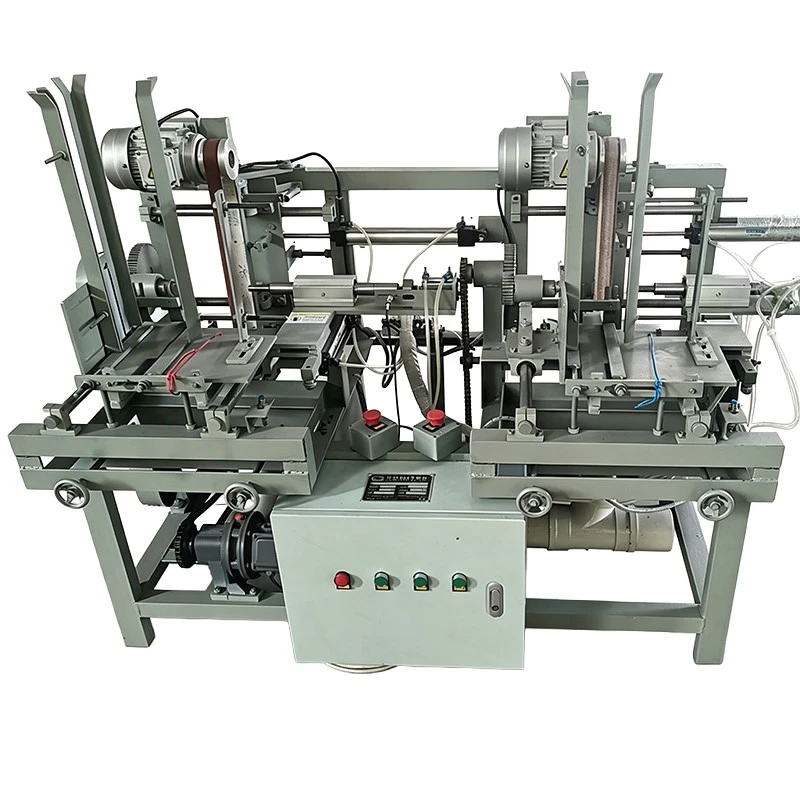

The Wood Belt Sanding Machine uses a continuous loop sanding belt as the main abrasive tool. During operation, the moving belt contacts the wooden workpiece and removes material from its surface. Because the sanding belt provides a relatively large contact area, this machine is suited to higher material removal and initial surface sanding rather than being limited to fine polishing.
The machine is intended for rough grinding and semi-fine grinding of wooden products. Its application range includes paint brush handles, wooden tool handles, and cylindrical wood materials. For production lines that require a separate initial sanding stage before finer surface treatment, the belt sanding process can provide a suitable first step.
Stable Belt Movement During Sanding
A sanding belt needs to remain properly tensioned and aligned while it is running. The machine therefore includes sanding belt tension adjustment and tracking mechanisms to help maintain stable belt movement during operation. These features are particularly relevant to continuous grinding, where an unstable belt can affect the consistency of the processed surface.
The company's experience in wood handle production also influences how it approaches sanding equipment. The company has developed belt, disc, and drum sanding machines so customers can select a sanding method according to surface requirements and production volume. For belt sanding applications, technicians can recommend a suitable combination of abrasive belt grit and running speed based on a customer's wooden handle sample.
Unlike a disc sanding machine, which is intended for specific flat areas such as handle ends and stepped surfaces, the belt configuration is focused on continuous surface contact and material removal. This makes the Wood Belt Sanding Machine suitable for the rough grinding stage and semi-fine grinding stage of wooden handle production.
The belt sanding process can also work together with other sanding methods. Belt sanding can handle the initial removal of machining marks and excess material, while finer sanding equipment can subsequently be used where a higher surface finish is required. This allows manufacturers to arrange sanding stages according to the actual condition of their wooden products.
Configuration Based on Wooden Handle Requirements
OEM and ODM customization is available for the equipment. The sanding station layout can be adjusted according to the shape and dimensions of the customer's wooden handles. This allows the machine configuration to be considered together with the actual workpiece instead of using one fixed arrangement for every application.
Customers can also provide wooden handle samples for equipment evaluation. The technical team can use the sample to recommend an appropriate sanding belt grit and operating speed combination. Before shipment, the machine is tested using actual wooden handles. Third-party inspection is accepted, and export orders use fumigation-free wooden packaging.
The standard production lead time is 30 days, while customized products require 50 days. The machine comes with a 6-month warranty. The company supports EXW, FOB, and DDP trade terms for international orders. The minimum order quantity and other commercial conditions can be confirmed according to the specific purchasing arrangement.
The company's production system includes machining equipment for key components, while its technical team has accumulated practical experience in sanding machine assembly and commissioning. This combination allows the machine to be configured around the customer's wooden handle requirements and tested with actual workpieces before delivery.
Product Specifications
|
Specification |
Details |
|
Equipment Type |
Wood Belt Sanding Machine |
|
Sanding Method |
Continuous loop sanding belt |
|
Applicable Processes |
Rough grinding and semi-fine grinding |
|
Applicable Products |
Paint brush handles, wooden tool handles, cylindrical wood materials |
|
Warranty Period |
6 months |
