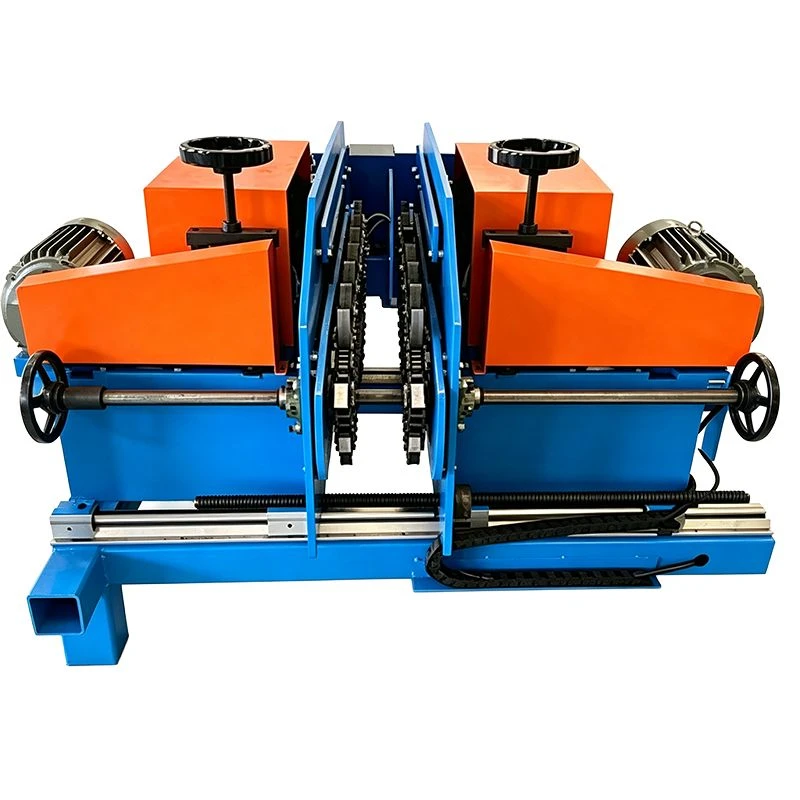

The automatic brush trimming machine performs the final shaping work on bristles after tufting. Once filaments are inserted into the brush head, they emerge at varying lengths and with uneven ends. This machine levels the bristle surface through precise cutting or grinding action, bringing all filaments to a uniform height and creating a clean, flat working face. The trimming process can be set to achieve different finish profiles depending on the brush type. This equipment handles paintbrushes, industrial brushes, cosmetic brushes, and other bristle products that require consistent end finish.
Why Trimming Affects Brush Performance
Bristle trimming affects both how the brush looks and how it performs. Uneven bristle ends cause streaking when painting, reduce cleaning effectiveness on industrial brushes, and create an uncomfortable texture on cosmetic products. Over-trimming wastes filament material and shortens brush life. Shengfeng Machinery came to understand these consequences through its own production experience. The company observed that the trimming step was often overlooked during equipment selection, yet it had a direct impact on product quality and material cost. The machine uses precise feed control to remove only the necessary amount of filament, achieving a level surface while minimizing waste. The machine's cutting tool angle and feed rate are optimized through testing to produce clean cuts without fraying the filament ends.
The machine's accuracy comes from its feed mechanism and tool positioning system. Brush heads are held in fixtures that maintain consistent orientation during the trimming cycle. The cutting or grinding head advances at a controlled rate to achieve the target length. For standard flat-trimmed brushes, the cutting path follows a straight line across the bristle ends. For brushes requiring profiled ends, the machine can follow a curved path using cam-controlled movement. Shengfeng Machinery conducts a trial trim on standard brush heads before each machine leaves the factory, verifying that the end surface is flat, the length is uniform, and no bristle damage occurs during the process.
Material Considerations Across Brush Types
Different filament materials respond differently to trimming. Nylon filaments cut cleanly with sharp tools but can develop burrs if the tool is dull. Pig bristle is a natural material with varied cross-sections, requiring careful feed control to avoid splitting. Horsehair, used in some cosmetic brushes, is fine and delicate, demanding very sharp cutting edges and light pressure. The machine is adjusted for each filament type through tool selection and feed speed changes. Shengfeng Machinery's technical team has accumulated handling experience across these materials and can advise on appropriate trimming parameters for different products.
Each automatic machine undergoes a trial run using actual brush heads before shipment. The test checks for consistent bristle length across the brush surface, a clean and flat end finish, and proper operation of the feed and tool positioning systems. The machine's key components, including the guide rails and tool holder, are produced on the company's CNC machining center to ensure accuracy and longevity. This in-house production capacity allows Shengfeng Machinery to maintain quality control from component fabrication through final assembly.
Ordering and After-Sales Support
The automatic brush trimming machine has a standard delivery time of 30 days. Custom configurations may require up to 50 days. Monthly production capacity is approximately 15 units. The minimum order quantity is one machine. A 6-month warranty covers manufacturing defects, with free parts and remote guidance provided during the warranty period. Payment terms are 40% deposit and 60% balance for standard machines, or 50% deposit and 50% balance for custom orders. The machine is packaged in ISPM-15 compliant wooden crates for export shipment. Trade terms including EXW, FOB, and DDP are available.
Product Specifications
|
Parameter |
Description |
|
Machine Type |
Automatic brush trimming machine |
|
Primary Function |
End surface leveling, length control, and end finishing |
|
Suitable Products |
Paintbrushes, industrial brushes, cosmetic brushes |
|
Material Handling |
Nylon, pig bristle, horsehair, and other common filaments |
|
Warranty |
6 months |
