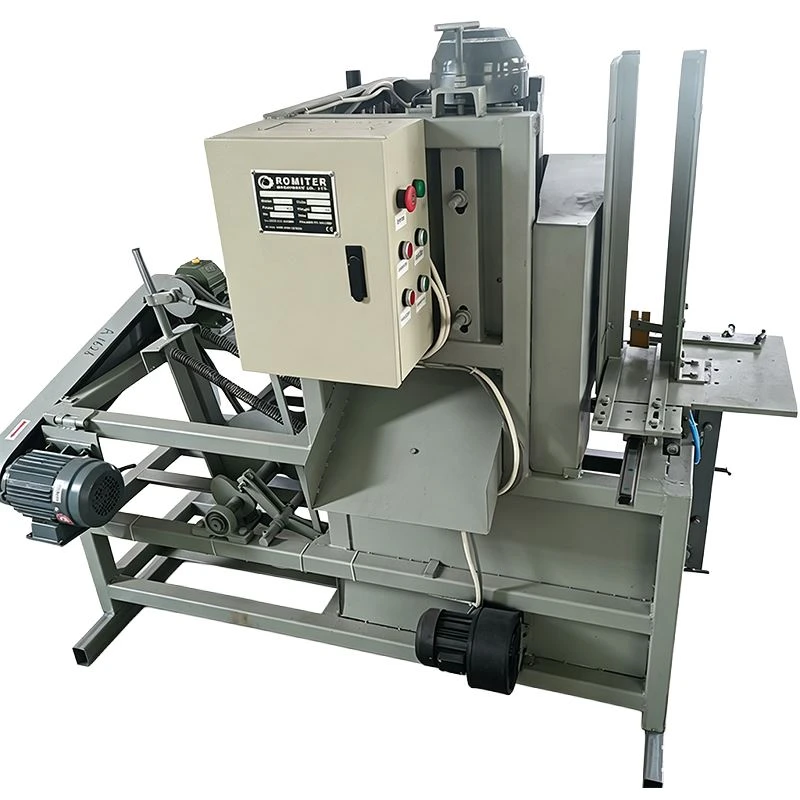

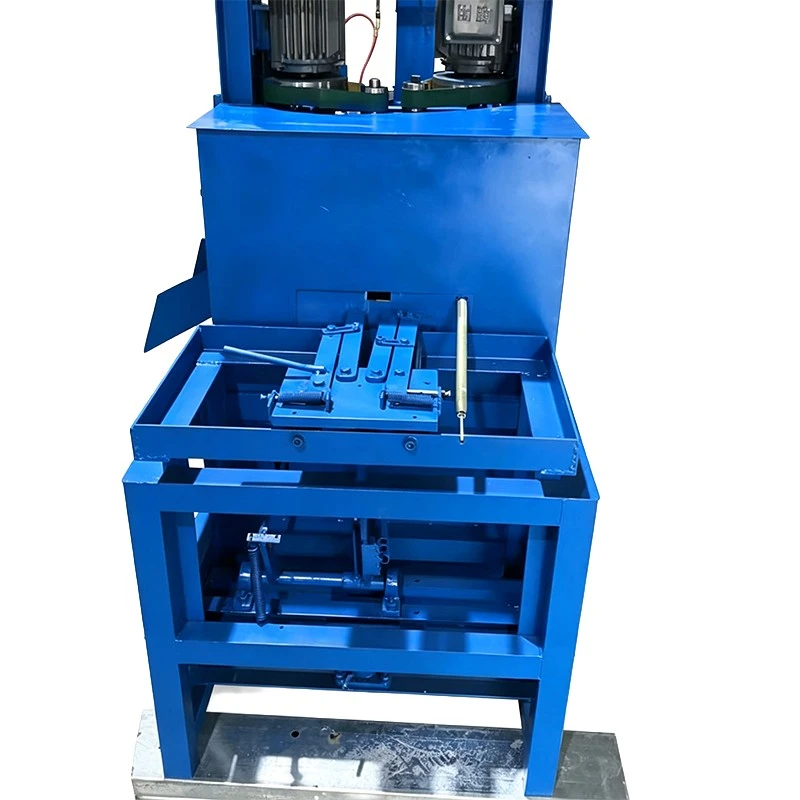

A common challenge in producing balanced wooden handles-such as those for picks, hammers, or paintbrushes-is maintaining identical contours on both sides while avoiding the errors and extra time caused by re-clamping. The double-sided shaping machine directly addresses this by employing two independent copying templates and cutting heads that work in unison. The operator clamps the workpiece once, and both sides are milled simultaneously, eliminating the need for a second setup or tool realignment.
This approach is particularly valuable for handles that demand a high degree of symmetry. When a single-side machine is used, the second clamping operation often introduces slight positional deviations, leading to mismatched profiles. The twin-station design ensures that both sides receive the same cutting path in the same cycle, greatly reducing variability. Typical products include pickaxe handles, cross-pickaxe handles, hoe handles, hammer handles, paintbrush handles, and makeup brush handles.
The concept originated from Shengfeng Machinery's own production floor. After years of manufacturing paintbrush handles, the company realised that repeated clamping on single-side shapers was not only slow but also a major source of asymmetry. Instead of simply adding an extra cutter, the engineering team focused on synchronising the two spindles so that the templates move in perfect harmony. Their extensive cutting-parameter database-covering poplar, birch, pine, and other species-allows them to recommend appropriate feed rates and spindle speeds based on the wood type and handle design.
Precision components such as guide rails and spindle housings are machined in-house using CNC equipment, providing the mechanical rigidity needed for accurate synchronised motion. Before leaving the factory, every machine undergoes a test run with actual handle blanks to verify that the two sides are cut to identical dimensions and that the symmetry meets quality standards. This real-workpiece validation is far more reliable than purely mechanical inspection.
For customers who have their own handle designs, the machine is not limited to standard templates. They can send a sample, and the company will manufacture a customised double-sided template that replicates the exact profile. Free sample trials are available before ordering, allowing buyers to confirm the shaping result with their own materials and drawings-especially useful when the profile has critical symmetry tolerances.
The factory is well-equipped with CNC lathes, sawing machines, and machining centres, enabling full in-house production from components to assembly. The minimum order is one unit. Standard delivery takes 30 days; customised versions require 50 days. The 6-month warranty covers all manufacturing issues. We accept EXW, FOB, and DDP terms, and export packaging uses ISPM-15 compliant fumigation-free wood. Third-party inspection is allowed, and volume orders may qualify for quantity discounts.
Product Specifications
|
Specification |
Details |
|
Equipment Type |
Double-Sided Wood Handle Shaping Machine |
|
Processing Stations |
Two synchronized processing stations |
|
Processing Method |
Double-sided synchronized shaping |
|
Applicable Products |
Pickaxe handles, cross pickaxe handles, hoe handles, hammer handles, paint brush handles and makeup brush handles |
|
Customization |
Two-sided shaping template can be customized according to samples |
