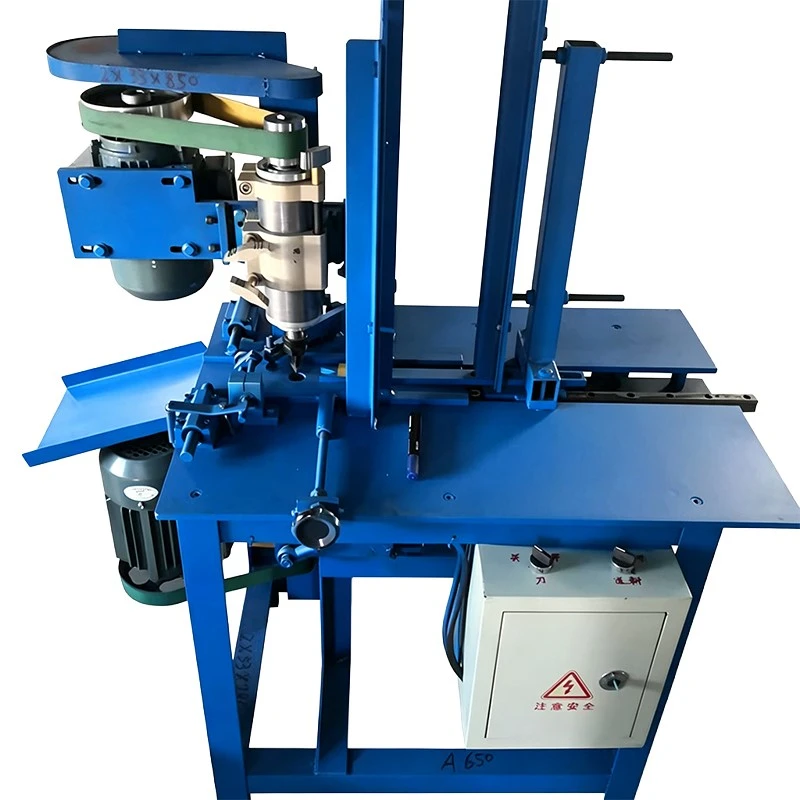

The nailing machine for wood drives nails through brush heads into handles to reinforce the joint. While adhesive bonds provide the primary connection, nail reinforcement adds mechanical security, preventing separation in brushes subjected to heavy use or rough handling. This equipment positions the assembled brush head and handle under a nailing head, which drives one or more nails through the head material and into the handle. The operation is fast and consistent, eliminating the variability of manual nailing. For brush manufacturers producing heavy-duty paintbrushes and industrial brushes, this nailing step improves product reliability.
Why Mechanical Reinforcement Matters
Adhesive bonds alone are sufficient for many brush applications, but certain products benefit from the added security of mechanical fastening. Brushes used in high-force applications-such as stripping paint or cleaning rough surfaces-subject the joint to repeated stress. Over time, impact forces can weaken adhesive bonds, allowing the handle to separate from the head. A nail through the head into the handle provides a secondary retention mechanism that holds even if the adhesive bond degrades. The machine ensures that this reinforcement is applied consistently, with each nail driven to the same depth and positioned correctly relative to the joint.
The machine uses a pneumatically or mechanically driven nailing head that delivers each nail with controlled force and depth. Operators load the assembled brush into a fixture, position it under the nailing head, and activate the cycle. The machine drives the nail or nails and returns to the starting position, ready for the next brush. The cycle completes in a few seconds, allowing production volumes to be maintained without creating a bottleneck at the nailing station. The nail supply system feeds nails automatically, keeping operations continuous without frequent reloading.
Customization for Nail Patterns and Depths
Different brush products require different nailing patterns. Some brushes use a single central nail. Others use two nails at the edges of the handle for additional holding. The machine is configured for the specific nailing pattern and depth required by each product. Shengfeng Machinery works with customers to define the nailing configuration, adjusting the nailing head position and depth control accordingly. The machine's control system stores settings for multiple configurations, allowing the same equipment to handle different brush types with minimal changeover time.
The nailing machine for wood has a 30-day standard delivery time. Custom configurations may require up to 50 days. A 6-month warranty covers the nailing mechanism and control system, with free parts and remote support during the warranty period. Monthly production capacity is approximately 15 units. The minimum order quantity is one machine. Payment terms are 40% deposit and 60% balance for standard orders. ISPM-15 compliant wooden packaging is used for export. Third-party inspections are accepted.
Product Specifications
|
Parameter |
Description |
|
Machine Type |
Nailing machine for wood (brush nailing equipment) |
|
Function |
Driving reinforcing nails through brush heads into handles |
|
Suitable Products |
Paintbrushes, industrial brushes requiring mechanical joint reinforcement |
|
Customization |
Nail pattern and depth adjustable per product requirements |
|
Warranty |
6 months |
